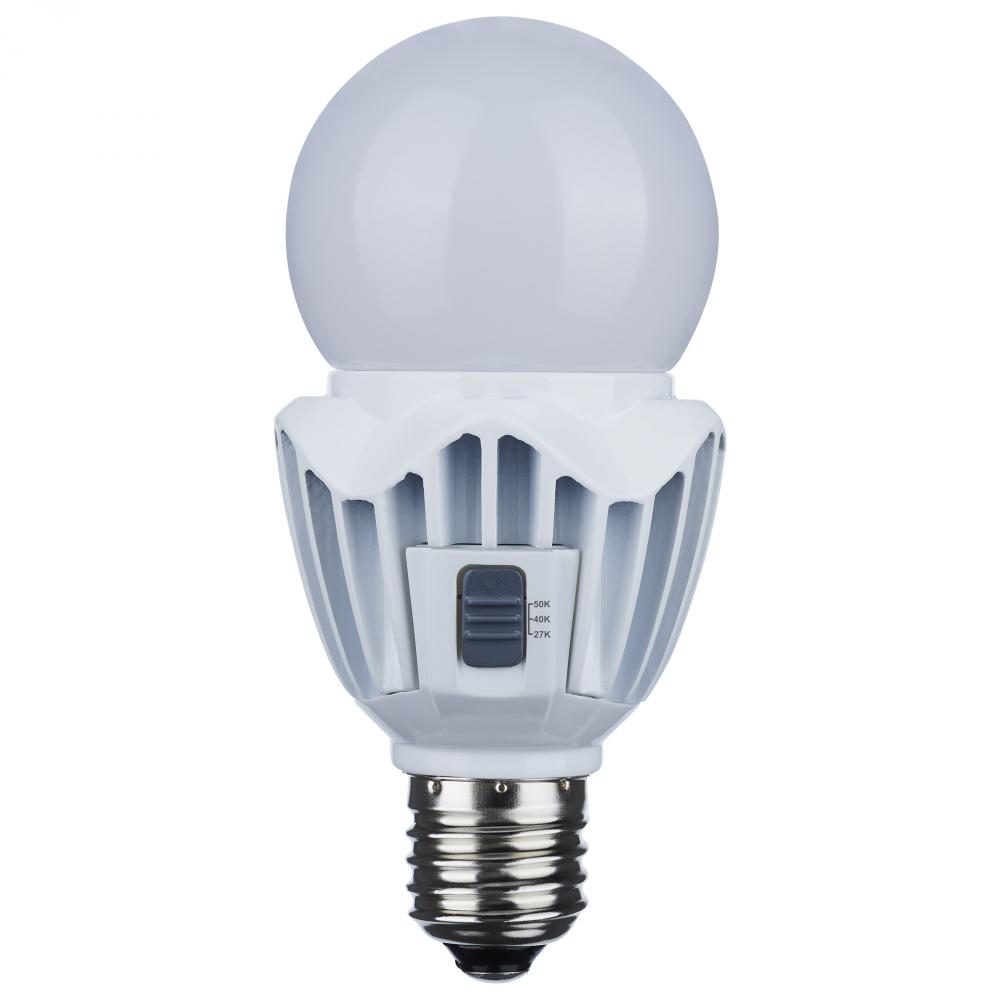

20 Watt LED A21; High Lumen Output; 27K/40K/50K CCT Selectable; Medium Base; White Finish; 120V-277V (S28737)
20 Watt LED A21; High Lumen Output; 27K/40K/50K CCT Selectable; Medium Base; White Finish; 120V-277V
Product Specification
Item #
S28737
Dimensions
Width: 2.46"
Additional product details
Internal #
X6NQQ
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
Type A
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
2700K/4000K/5000K
Bulb Shape
A21
Diameter
2.46
EA Length
2.76
Harmonized Codes
8539.52.0010
Length
5.08
Lumens
2760L/3020L/2860L
Shap Carton Width
2.76
Ship Carton Height
5.59
Ship Weight
0.64
Warranty
5 Year Limited - Hi-Pro
Weight
0.44
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread
280
Bulb ANSI Base
E26
Bulb Base
Medium
Bulb Finish
White
Carton Cubic Feet
0.0246
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - >2600 Lumens
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White to Natural Light
Country Of Origin
China
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
120V only
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
DLC Approved
No
Efficacy
138.00/151.00/143.00 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
3 CCT Selectable
Feature 2
Range Voltage 120V-277V
Feature 3
Ballast Bypass Type B
Feature 4
Integrated Fins for Excellent Heat Dissipation
Feature 5
Dimmable
Feature 6
Damp location rated
Feature 7
Enclosed Fixture Rating
Feature 8
280 Degree Beam Angle
Housing Color
White
Incandescent Equivalent
150W
Indoor Outdoor
Indoor;Outdoor
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Finish
Frosted
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
SATCO|NUVO's S28737 LED Hi-Pro A21 20W Lamp offers ColorQuick convenience ideal for commercial projects. Choose from 2700K/4000K/5000K color temperatures at installation to achieve the desired atmosphere for the environment. Designed to work in 120V to
Material
Die-Cast Aluminum / PC
Minimum Compartment Size
Length: 6 in. Width: 6 in. Height: 8.5 in.
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
1
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Hi-Pro A21 Lamps offer ColorQuick convenience ideal for commercial projects. Choose from 2700K/4000K/5000K color temperatures at installation to achieve the desired atmosphere for the environment. Designed to work in 120V to 277V fixtu
Short Description
20WA21/LED/3CCT/120-277V
Style
Utility
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Watts
20W
